Creating Certificates

Usage​

import the certificate​

To accept all certificates signed by the CA for this project and it's demos the root certificate must be imported into the browser of your choice.

If the Native App has been installed on the system, the root certificate resides inside the program folder of the application (C:\Program Files (x86)\hda\nativeapp\*.crt) otherwise it can be found in :demonstrations:/demoCA/rootCA.crt - if found import it and accept the option Trust this CA to identify websites.

Example how to import certificate in Firefox:

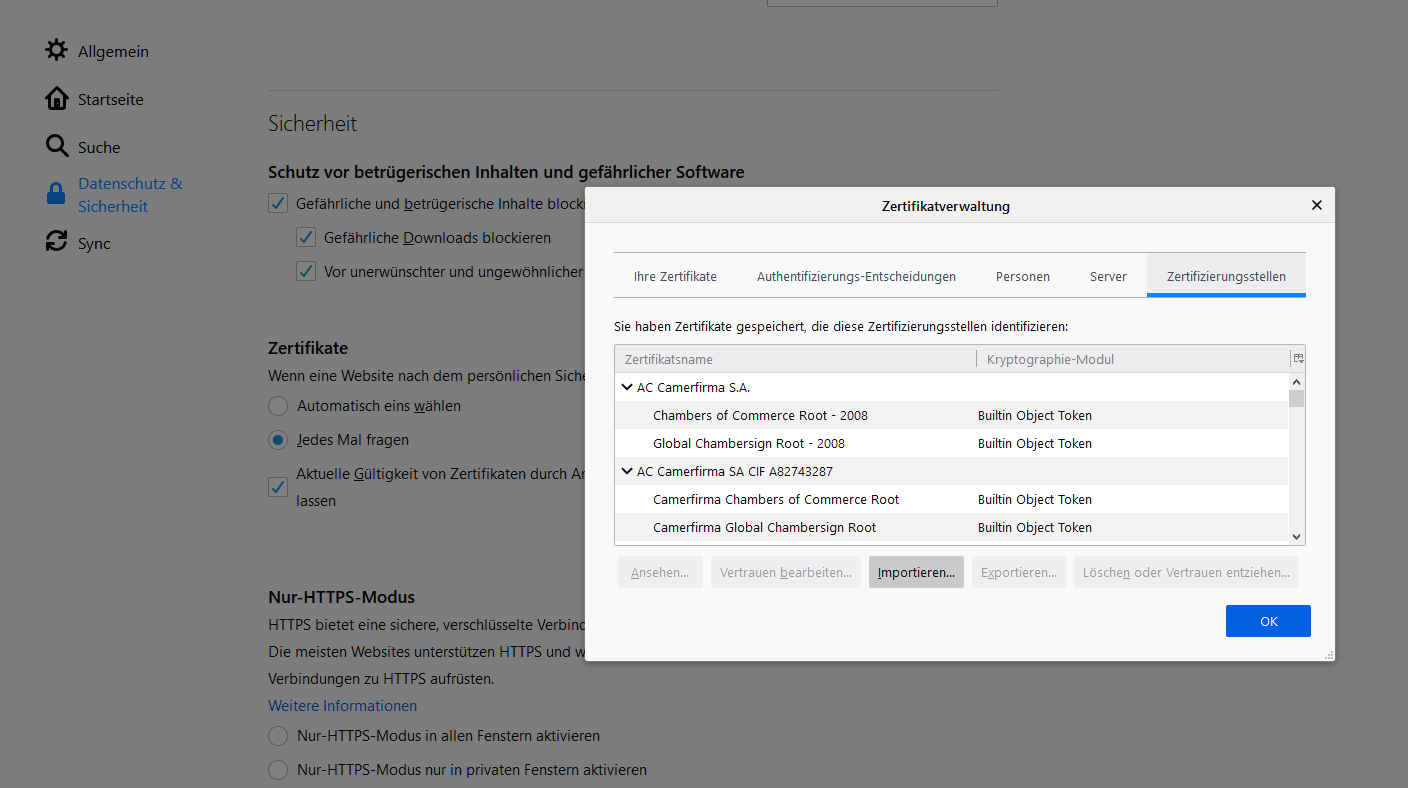

Importing the certificate in Firefox is done by following this menu structure: Settings -> privacy and security -> certificates -> Certificate Manager -> Authorities -> import

firefox_cert

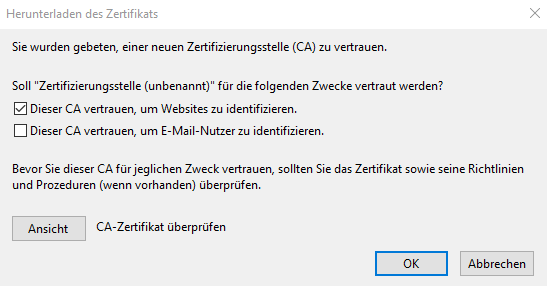

In the popup after clicking import choose "Trust this CA to identify websites." and click OK.

ca

Importing the root certificate has to be done for Thunderbird, too.

From a User perspective nothing more has to be done.

Config & Development​

Why an own CA?​

For our demos we need trusted certificates in order to have SSL/TLS connections that are not flagged as untrusted connection by the browser (because of server self-signed certificates). Having an own CA where the root certificate is imported (and trusted) allows us to create certificates as needed.

Currently we utilize certificates for: - Hosting https websites with self specified domains - Sending signed mails - Hosting the teaching platform

The following sections provide the basis for the usage of the CA for creating new certificates or modification of already existing ones.

generating rootCA​

This has already been done and remains for transparency reasons

  1. generate root key and certificate
openssl genrsa -out rootCA.key 4096
openssl req -x509 -new -nodes -key rootCA.key -sha256 -days 1024 -out rootCA.crt

! => The rootCA.crt is used as root of trust and has to be imported into the browser / thunderbird.

Create new certificates (csr+sign)​

In demoCA run

./sign_cert.py --domains <domain> --ca-cert intermediateCA.crt --ca-key intermediateCA.key

to generate a new certificate.

Create a cert chain​

Just concat the certs:

cat <your cert> intermediateCA.crt rootCA.crt > cert_chain.pem

smime​

To create smime signed mails you need a key and a cert signed by our CA.

# create the key
openssl genrsa -aes256 -out smime_nina_hardt.key 4096

# create csr - dont use the basic.cnf or your emailaddress will already be set
openssl req -new -key smime_nina_hardt.key -out smime_nina_hardt.csr -subj "/C=DE/ST=Hessen/L=Darmstadt/O=mpseinternational/CN=mpseinternational.com/emailAddress=nina.hardt@mpseinternational.com"

# sign the certificate
openssl x509 -req -days 2440 -in smime_nina_hardt.csr -CA intermediateCA.crt -CAkey intermediateCA.key -set_serial 1337 -out smime_nina_hardt.crt -addtrust emailProtection -addreject clientAuth -addreject serverAuth -trustout

# optional export key and cert for thunderbird import
openssl pkcs12 -export -in smime_nina_hardt.crt -inkey smime_user.key -out smime_nina_hardt.p12

permissions​

The rootCA key should be restricted in access, in our environment not as critical.

Best practices: - directory 700 - owned by root - files 600 - owned by root
